160A MMA Inverter Machine

160A MMA Inverter Machine

£260.00 Excl. VAT

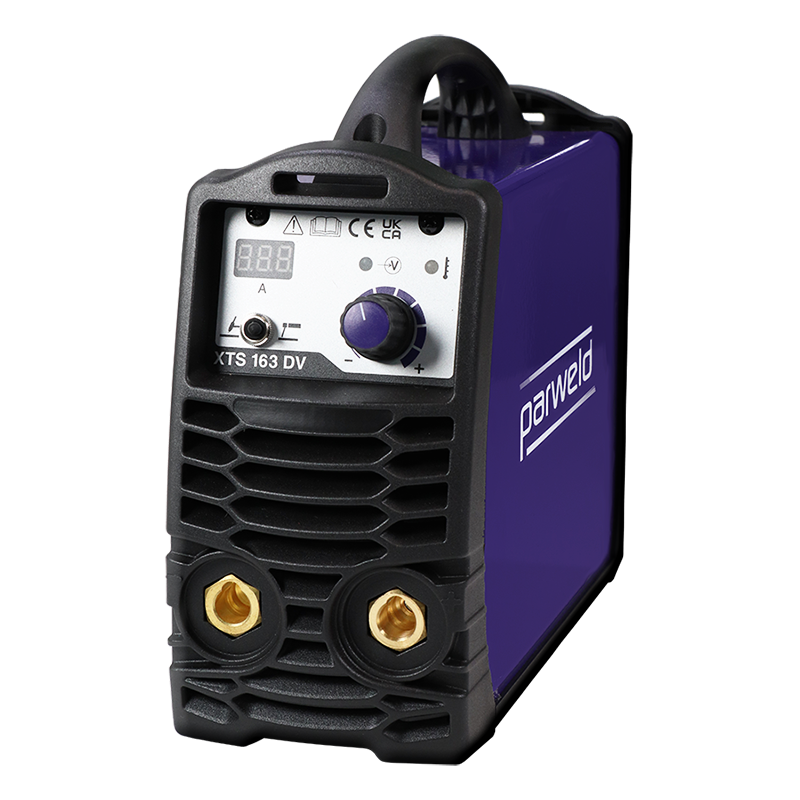

Model No. XTS 163 Dual Voltage

The XTS 163DV operates on 230 or 110V supply using smart switching technology making it ideal for site use. Electrodes up to 3.2mm can be used with ease.

By fitting the optional TIG torch and coupling to a suitable gas supply the XTS 163DV can be used for TIG welding and is suitable for welding steel and stainless steel. The lift arc mode limits the arc current when the tungsten touches the work piece preventing electrode damage.

The XTS 163DV is able to cope with inputs which fluctuate by +/-15% & can be used with the majority of generators. The machine is housed in a rugged steel case.

Key Features Include:

  • Dual Voltage 110V / 230V
  • Smart Switching
  • 160A @ 25% Duty Cycle
  • Lift TIG Mode
  • Generator Friendly
  • Digital Display for Easy Setting
  • Over Voltage Protection
  • Over Current Protection
  • Easy Electrode Striking with Arc Force
  • Re-Striking with Hot Start
  • Connections 35-50mm Twist Lock
Categories: , , ,

Description

Phase Single Phase
Machine Style Compact
Machine Type Inverter
Maximum Current 5-140A (110V), 5-160A DC (230V)
Duty Cycle 160A @ 25% Duty Cycle
Input Voltage 110V 1P, 230V 1P
No Load Voltage 50V
Max Electrode Size 3.2mm
Input Current (Eff) 15.5A, 17A
Output DC
Cable Connection 35-50 Twist Lock
Minimum Fuse Rating 16A, 32A
KVA 8
Generator Size (Requires AVC) 10 KVA
Cooling Air, Fan, Forced
Enclosure Protection IP23S
Comes With 3m Cable, 3m Earth Lead, Electrode Holder
Ideal for Applications Agricultural, DIY, Light Industrial Manufacturing, Maintenance Repair, Metal Fabrication, Training
Special Features Arc Force, Electrode Striking, Lift TIG Mode, Over Voltage + Over Current Protection, Re-Striking, Re-Striking with Hot Start, Smart Switching
Warranty 5 Year Warranty
Conforms To IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6, RoHS Compliant
