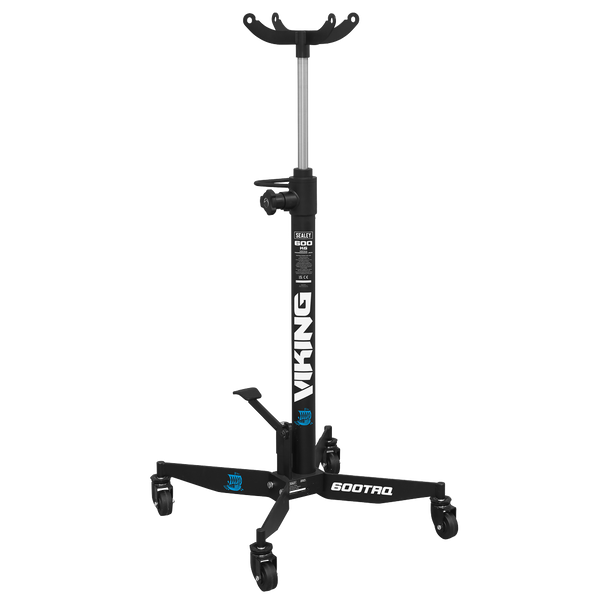

Viking Vertical Transmission Jack with Quick Lift 600kg

£560.00 Excl. VAT

Model No. 600TRQ

• QUICK LIFT – reduced time and effort needed to get saddle to gearbox, only a maximum of 22 pumps needed to reach full height.
• CONVENIENT – Single foot pedal operation keeps hands-free during lifting process.
• SAFE – Spring loaded dead man’s safety release control reduces the risk of inadvertent lowering.
• CONTROLLED – 2-Way hydraulic unit ensures that the saddle lowers at a controlled speed at all times, even without load.
• HEAVY DUTY – Hydraulic unit larger than the economy models for improved performance and durability.
• UNIVERSAL – Saddle is reversible allowing a jack pad to be fitted to support items other than transmissions.
• MANEUVERABLE – Castors and side handle make the units easily positioned.
• SUITABLE – for use with optional Adjustable Gearbox Support – Model No. ADT3.
• 3 YEAR GUARANTEE*.

Description

Base Size:
600 x 600mm
Capacity:
600kg
Fixed/Adjustable Saddle:
Fixed
Maximum Saddle Height:
1986mm
Minimum Saddle Height:
1146mm
Optional Accessories:
Adjustable Gearbox Supports – ADT3, ADT7
Pump Strokes to Maximum Height:
22
Ram Extensions:
840mm
Nett Weight:
34.8kg
